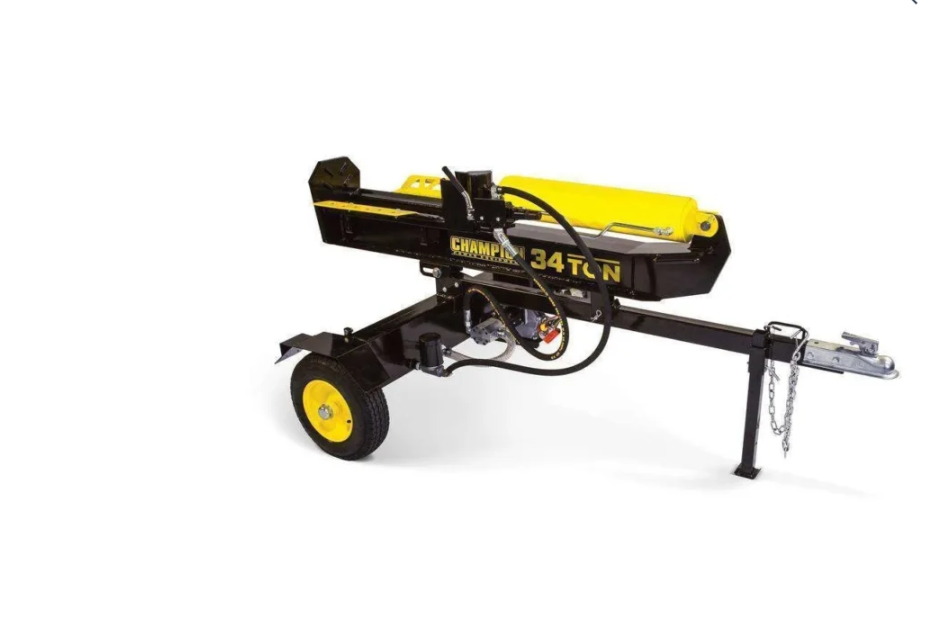

Champion 100425 34 Ton 338cc Horizontal/Vertical Log Splitter Manufacturer RFB

Description

The Champion 35-Ton Log Splitter delivers professional-grade wood splitting performance for homeowners and contractors alike. Equipped with a robust 338cc (approx. 11HP) engine, this machine powers through even the toughest logs with minimal effort. Its fast 16–20 second cycle time and auto-return valve maximize efficiency, reducing your workload and saving time.

Versatile & Convenient Design

• Horizontal & Vertical Splitting: Easily switch between positions by pulling a pin and rotating the beam—no tools required.

• Log Catchers & Dislodgers: Keep logs in place and prevent jams, saving your back and increasing safety.

• Towable & Portable: Includes a full tow package with a 2″ coupler, DOT-approved tires, and safety chains for easy transport to job sites.

Built for Durability & Performance

• Champion 338cc Engine: Cast iron sleeve and low oil shutoff ensure long-lasting durability.

• Powerful Hydraulic System: 9-gallon hydraulic reservoir with 2-stage pump delivering 13 GPM for consistent splitting power.

• Splitting Wedge: 7″ sharpenable wedge splits large logs with ease.

• Log Opening: 24 inches for handling a variety of log sizes.

• Cycle Time: 18–20 seconds for fast operation.

Specifications

• Force / Tonnage: 35 Ton (70,000 lbs)

• Cylinder: 4.7″ x 23″

• Operating Size: 86″ L x 41″ W x 47″ H

• Wheels & Tires: High-speed 4.80 x 8

• Hydraulic Filter: Included

• Safety Control Valve: Detent – Auto Return

• Crate Dimensions: 55″ L x 27″ W x 22″ H

• Shipping Weight: 617 lbs

• Electric Start: Not included

• Warranty: 2-Year Limited Consumer Warranty
