Champion 100425 34-Ton Horizontal/Vertical Log Splitter – 338cc Engine

$918.34

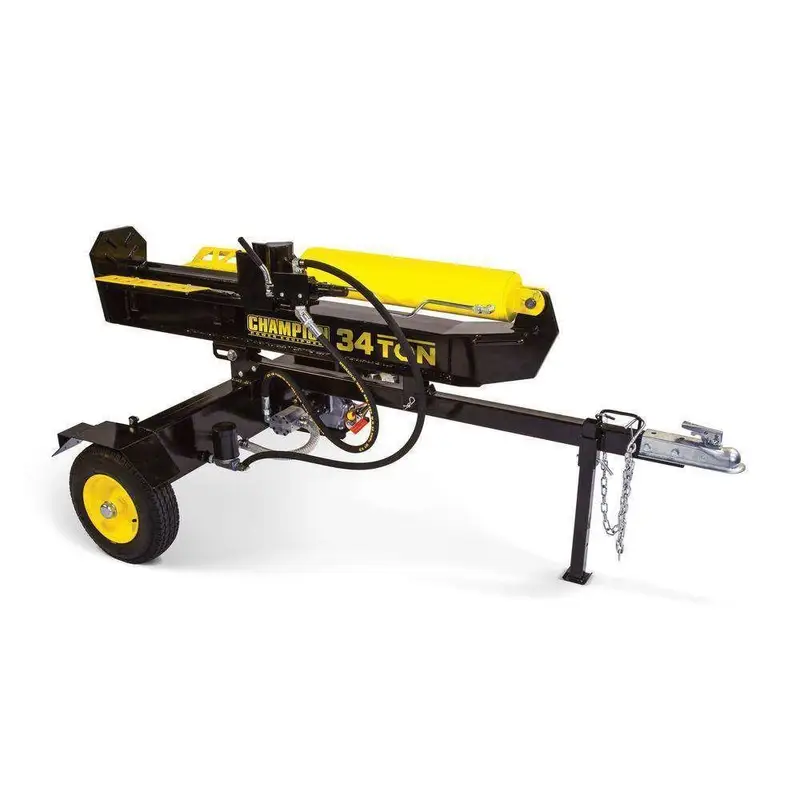

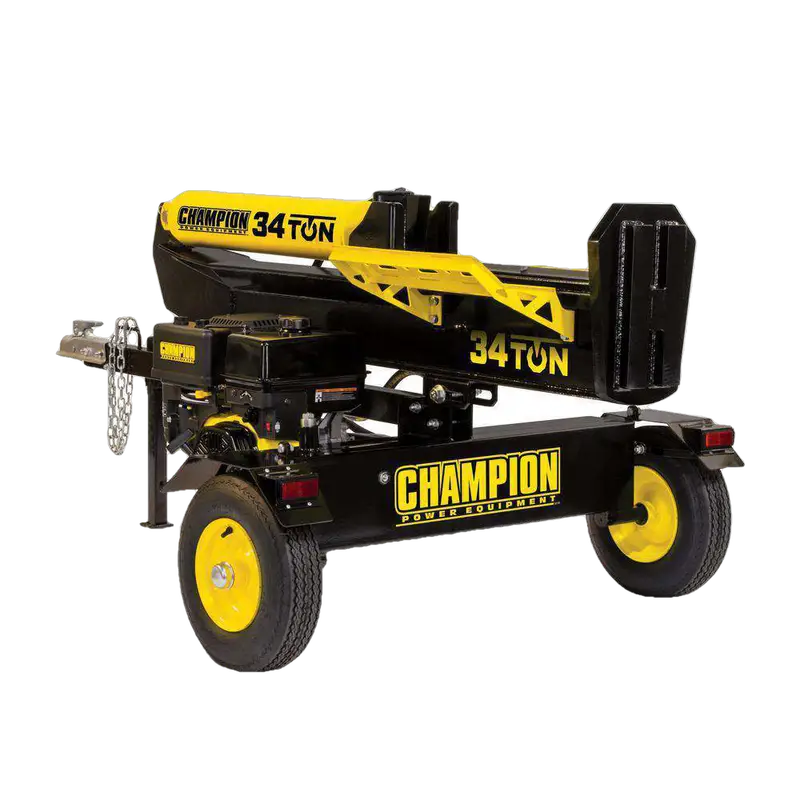

The Champion 100425 is a heavy-duty, towable log splitter designed to handle tough firewood quickly and efficiently. Equipped with a powerful 338cc (11HP) Champion engine, this 34-ton splitter operates in both horizontal and vertical positions, making it versatile for any logging task. Its fast cycle time and auto-return valve reduce labor and save time, while […]

SKU: 472828
Category:

Description

The Champion 100425 is a heavy-duty, towable log splitter designed to handle tough firewood quickly and efficiently. Equipped with a powerful 338cc (11HP) Champion engine, this 34-ton splitter operates in both horizontal and vertical positions, making it versatile for any logging task. Its fast cycle time and auto-return valve reduce labor and save time, while included log catchers and a simple horizontal/vertical adjustment protect your back.

Features:

  • Powerful Engine: 338cc Champion engine with low oil shut-off and durable cast iron sleeve.

  • High Splitting Force: 34 tons (70,000 lbs) of splitting power.

  • Fast Cycle Time: 18–20 seconds per split, maximizing productivity.

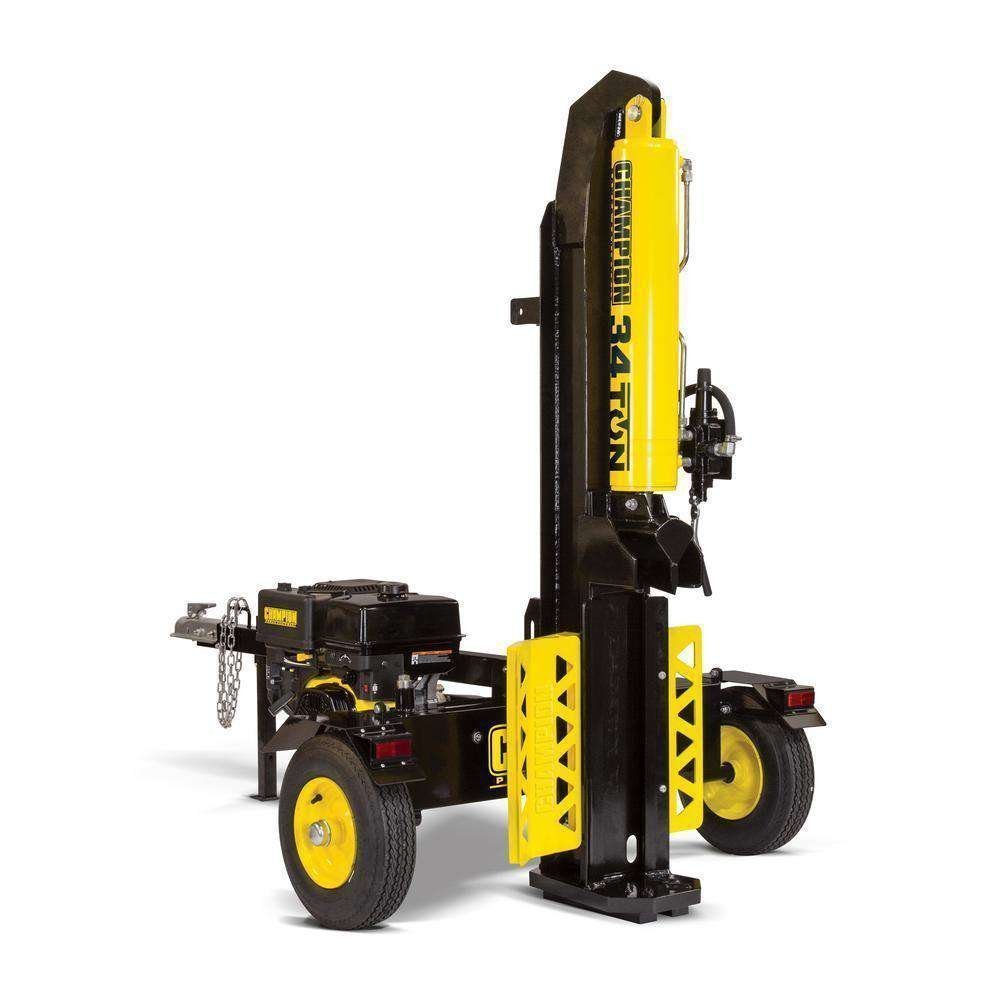

  • Dual Operation: Easily switch between horizontal and vertical splitting by pulling and rotating the beam.

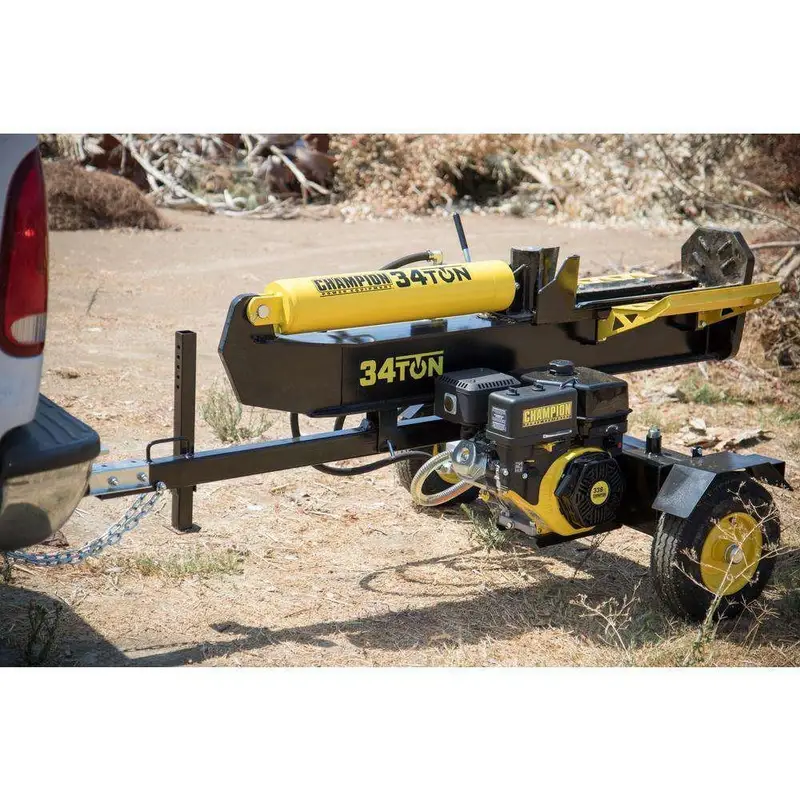

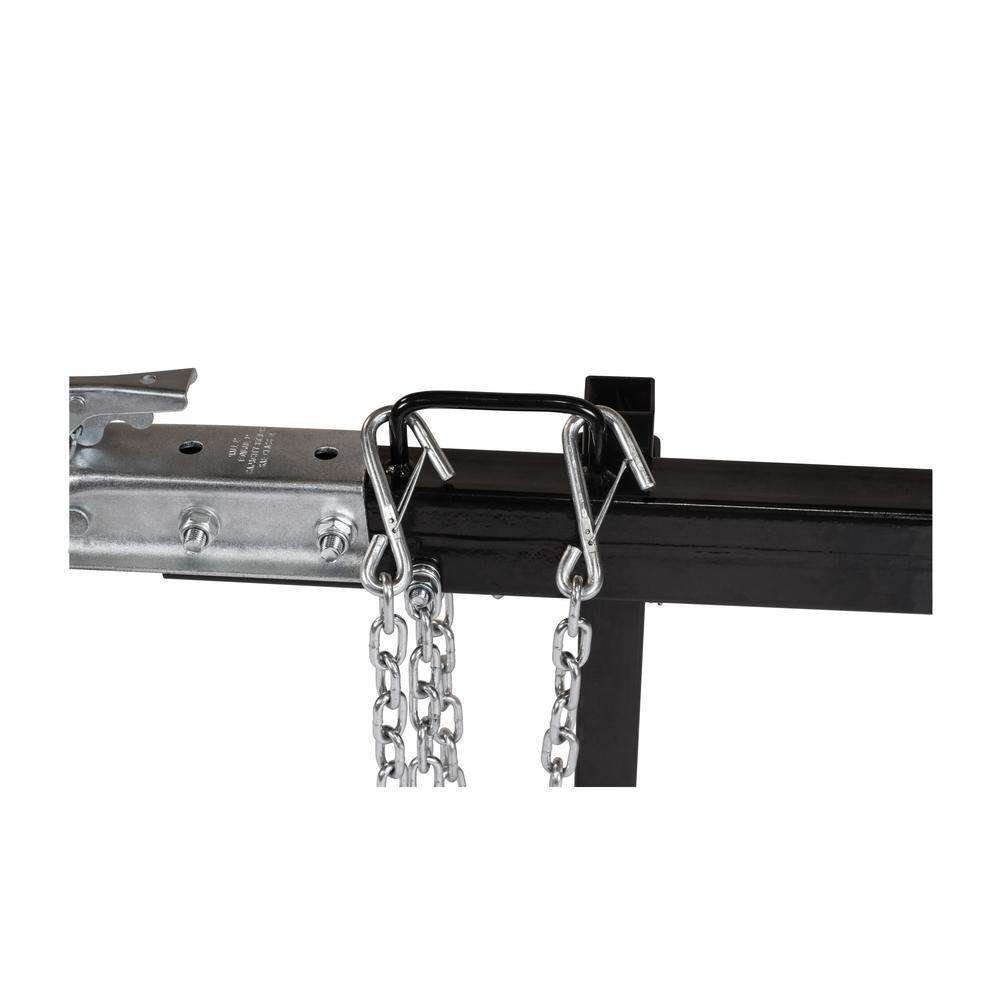

  • Towable Design: Full tow package with 2″ coupler and DOT-approved high-speed 4.80 x 8 tires.

  • Hydraulic System: 9-gallon capacity, 2-stage pump with 13 gallons per minute flow, detent auto-return safety valve.

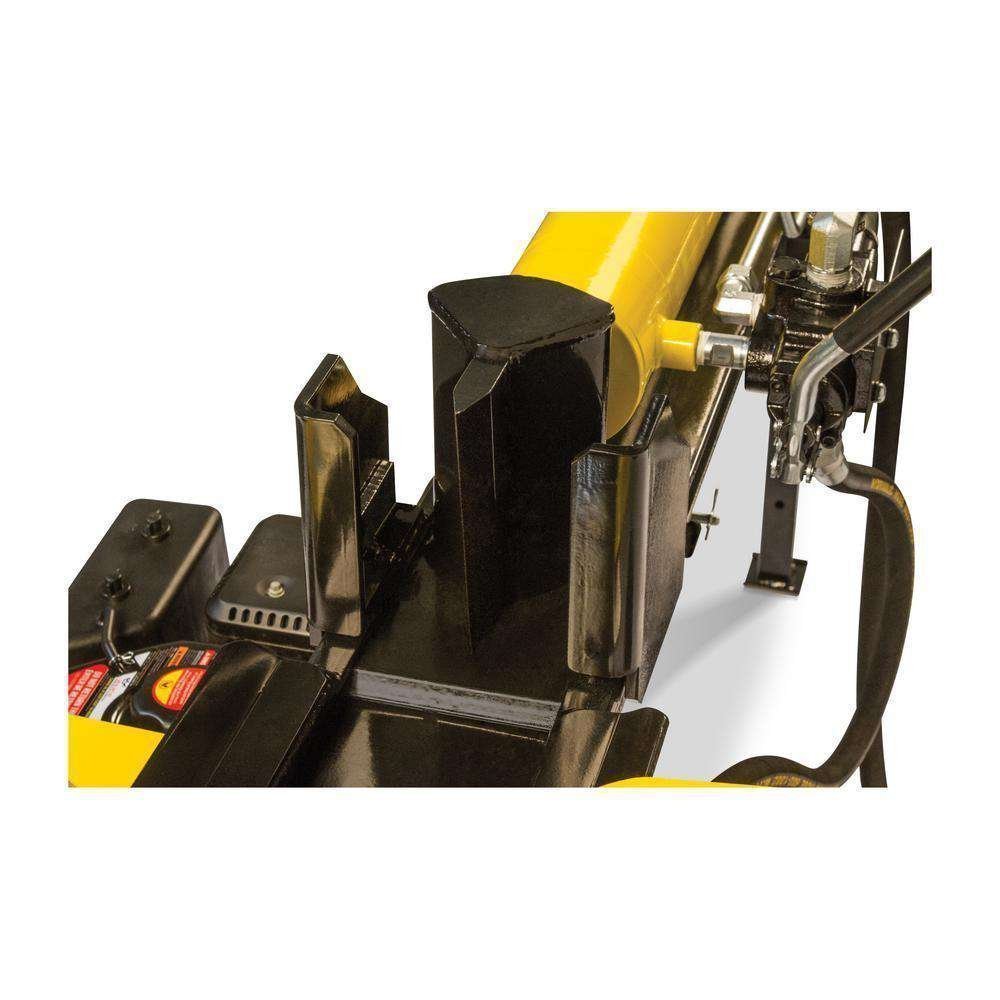

  • Wedge: 7″ sharpenable splitting wedge.

  • Log Handling: Includes log cradles and log dislodger for safe and convenient splitting.

  • Durable Construction: Industrial-grade beam and heavy-duty components for long-lasting performance.

  • Partial Assembly Required: Unit comes partially assembled; some setup required.

  • Shipping: Delivered via freight truck; lift gate recommended if needed.

Specifications:

  • Engine: 338cc Champion, ~11 HP

  • Splitting Force: 34 Ton (70,000 lbs)

  • Cylinder: 4.7″ x 23″

  • Log Opening: 24″

  • Cycle Time: 18–20 seconds

  • Operating Size: 86″ L x 41″ W x 47″ H

  • Hydraulic Capacity: 9 gallons

  • Wheels & Tires: 4.80 x 8, road approved

  • Weight: 617 lbs

  • Warranty: 2-year limited consumer warranty

Why Choose the Champion 100425:

  • Efficiently splits large logs in less time

  • Ideal for professional or residential use

  • Versatile horizontal/vertical operation

  • Towable for easy transport to job sites
