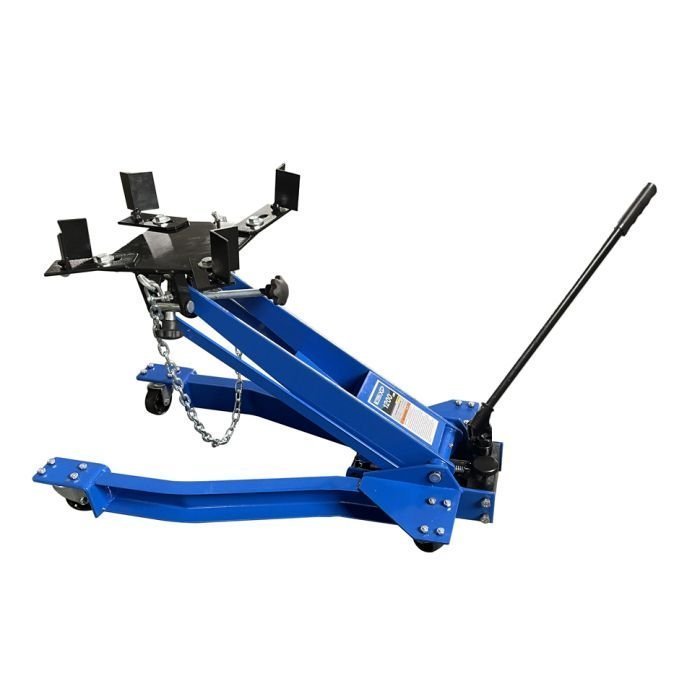

K Tool Low-Profile Transmission Jack

K Tool Low-Profile Transmission Jack

Original price was: $539.00.Current price is: $504.00.

The K Tool Low-Profile Transmission Jack is ideal for those that have limited space under the vehicle. The fully adjustable head plate can be tilted forward, backward, and side to side for the convenience of removal of transmissions. Steel wheels and full swivel ball-bearing casters allow for easy movement while under the vehicle. A load-restraining […]

SKU: transmissionjack04
Category:

Description

The K Tool Low-Profile Transmission Jack is ideal for those that have limited space under the vehicle. The fully adjustable head plate can be tilted forward, backward, and side to side for the convenience of removal of transmissions. Steel wheels and full swivel ball-bearing casters allow for easy movement while under the vehicle. A load-restraining chain is provided for additional safety during raising and lowering.

Features

  • Removal, Installation, and Moving of Heavy Truck Transmissions
  • Built-In By-Pass System Prevents Ram from Over Extension
  • Meets or Exceed ASME PASE 2019 Standards
  • Wide Front Open Chassis for Lower Profile When Loaded
  • Universal Adjustable Saddle with Four Brackets
  • Load Restraining Chain
  • Full Swivel Pump Handle
  • Controlled Lowering with Release Valve
  • Steel Wheels and Full Swivel Ball Bearing Casters

Specifications

  • Capacity: 1,200 lbs.
  • Max Height: 31.5″
  • Min Height: 7″
  • Travel: 24.5″
  • Saddle Tilt: +/-10°
  • Max Lifting Head Size: 15-1/2″ x 15-1/2″
  • Chassis Length: 33″
  • Overall Width: 19.7″
  • Weight: 130 lbs.
  • Warranty: 1 Year
